Amvic™ ICF Accessories
-
ICF HV Hooks
The Amvic ICF Hook is an all-in-one metal wire clip designed to replace conventional nylon cable ties in ICF construction.
The hook is engineered with seven bends to provide it with simultaneous horizontal and vertical locking capacity.
It is available in two sizes; HV22 for Amvic’s Standard ICF (6” web spacing) and HV30 for Plus ICF forms (8” web spacing).
-
ICF Hex Screws
The Amvic ICF screw is designed to help increase efficiency and reduce cost during the construction process. It’s hardened and galvanized construction offers superior all-weather performance and durability.
The coarse thread works well with the plastic ICF webs with increased holding capacity and pullout strength. The combination of the hex head and the loose washer makes for a quick and easy screw removal. In addition, the loose washer prevents screws from being recessed into lumber when fastening to the web of an ICF form.
Available in 2” (51mm) or 3” (76mm) lengths.
-
Zip Ties
Amvic’s heavy duty zip ties have a tensile rating of 175lbf (79.38kgf) and offer a cost-effective method for quick and easy securement of ICF blocks together, either in a vertical or horizontal configuration.
Each bag contains 50 black nylon ties that are UV stable and can be used for interior and exterior applications.
The ties come in two lengths, 36” and 48” lengths.

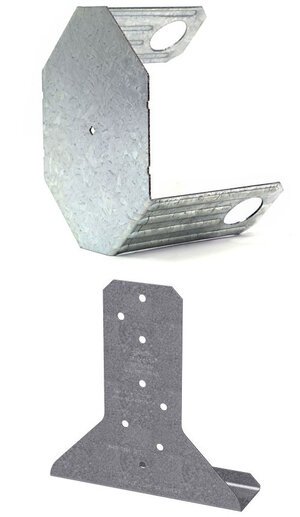

ICFVL Ledger Connector System by Simpson Strong-Tie

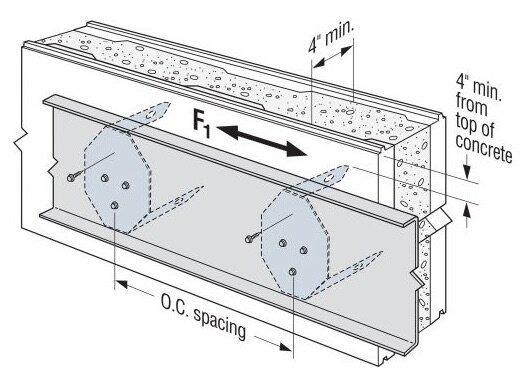

The ICFVL ledger connector system is engineered to solve the challenges of mounting wood or steel ledgers to ICF walls.
The ICFVL system is designed to provide both vertical and lateral in-plane performance. The system offers many benefits over traditional anchor bolting, including better on-center spacing in most cases, faster installation and no protrusions.

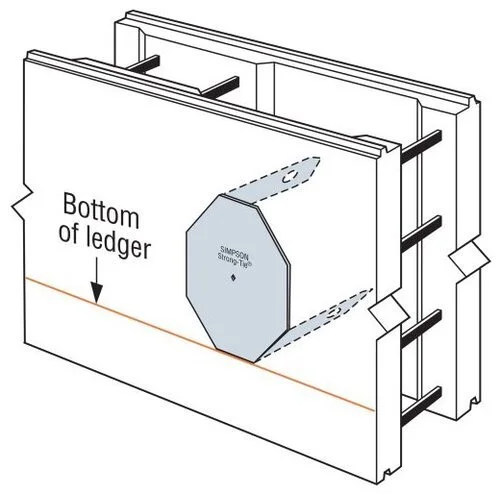

The embedded legs of the ICFVL are embossed for additional stiffness and the hole enables concrete to flow through and around the connector. The exposed flange on the face of the ICF provides a structural surface for mounting either a wood or steel ledger.
The ICFVL anchor is used in conjunction with both of the hanger types as well as by itself for the direct mounting of steel ledgers.
The ICFVL-W and ICFVL-CW hangers are used for wood and LVL ledger boards respectively.
